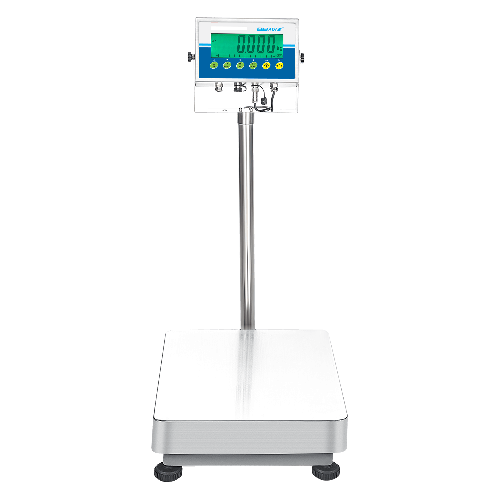

Platform Weighing Scale - ADAM Platform Series

  • 6 Weighing units (kg, g, lb, oz, lb:oz, Newtons)
  • Color coded keys
  • Hold function
  • Large LCD display
  • Stainless steel weighing pan
  • Check weighing LED bar graph
  • External calibration
  • RS-232 Output
  • Rechargeable battery up to 90 hours operation

Adam’s AFK scales are built tough to deliver reliable performance and effortless weighing. Designed for rugged industrial applications, the sleek, stainless steel indicator with superior sealing protects from dust, ensuring longevity. When used in production and warehouse environments, the large backlit display is vivid and easy to read, helping to streamline activities and reduce errors in data entry. Built-in limit lights make the AFK ideal for check weighing; the indicator shows when you are below your desired weight, at your required weight, or above your weight, and an audible alarm provides a secondary notification. No matter what the application, the AFK offer the right combination of features and performance needed in industry today

AGB and AGF bench scales feature a stainless steel indicator and sturdy construction, and are available in three platform sizes and a wide selection of capacities. Accomplish weighing and counting tasks quickly, as results are readily visible on the backlit LCD, which offers 40mm-high-digits. AGB and AGF scales expedite checkweighing with a large, backlit display that changes colour to show if the weight is over, under or within the set limit. For maximum efficiency, a tactile keypad offers smooth operation. With an internal rechargeable battery, the AGB/AGF can be used in locations where power is unavailable. Swiftly transmit results to computers or printers using the RS-232 interface. The scales feature external calibration, so verification and adjustments can be performed using weights. EC type approval means the AGB and AGF are suitable for use in legal for trade applications.

Model AFK – 150 AFK – 300 AFK – 600
Capacity 150 kg 300 kg  600 kg
Readability 10 g  20 g 50 g
Repeatability (S.D.) 10 g 20 g 50 g
Linearity (+/-)  20 g 40 g  100 g
Pan Size 400 x 500 mm 400 x 500 mm 600 x 800 mm
Stabilization Time 2-3 seconds  2-3 seconds  2-3 seconds
Display Backlit LCD with 40mm digits and capacity tracker Backlit LCD with 40mm digits and capacity tracker Backlit LCD with 40mm digits and capacity tracker
Power Supply 12vDC 800mA adapter or rechargeable battery (6v 4.5Ah battery) 12vDC 800mA adapter or rechargeable battery (6v 4.5Ah battery) 12vDC 800mA adapter or rechargeable battery (6v 4.5Ah battery)
Operating Temperature  10° to +40°C 10° to +40°C 10° to +40°C
Overall Dimensions (wxdxh) 400 x 620 x 790 mm 400 x 620 x 790 mm 600 x 940 x 830 mm
Net Weight 12.8 kg 12.8 kg 24.3 kg
Sr No Model Capacity Readability Platform Size
1 AFK – 150 150 kg 10 g 400 mm x 500 mm
2 AFK – 300 300 kg 20 g 400 mm x 500 mm
3 AFK – 600 600 kg 50 g 600 mm x 800 mm
4 AGB - 8 8 Kg 0.1 g 300 mm x 400 mm
5 AGB - 16 16 Kg 0.2 g 300 mm x 400 mm
6 AGB - 35 35 Kg 0.5 g 300 mm x 400 mm
7 AGB - 70 70 Kg 1 g 300 mm x 400 mm
8 AGF - 150 150 Kg 5 g 400 mm x 500 mm
9 AGF - 300 300 Kg 10 g 400 mm x 500 mm
10 AGF - 600 600 Kg 20 g 600 mm x 800 mm
  • ATP Adam thermal printer
  • RS-232 cable
  • Adam DU data collection program
  • AE Relay Box
